Automatic Plane Labeling Machine for Polymer Battery

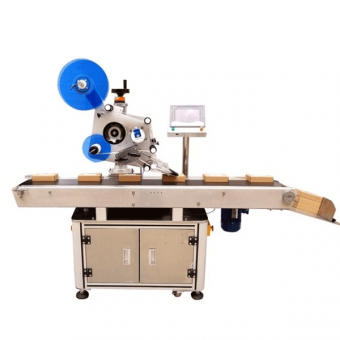

Automatic Plane Labeling Machine for Polymer Battery 1.Product Picture 2.Basic Use It is suitable for labeling or self-adhesive film on the upper plane of various articles, such as books, folders, boxes, cartons, etc. replacing the labeling mechanism can be suitable for labeling on uneven surfaces. It is widely used for planar labeling of large products and labeling of planar objects with a wide range of specifications. Optional printer or inkjet printer to the labeling head, which can print the production date, batch number, inkjet bar code and other information on the label. It can be equipped with an inkjet printer to the conveyor belt to spray the production date, batch number, bar code and other information on the product before or after labeling. 3.Scope of Application Applicable labels: Self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc. Applicable products: Products requiring labels or films on flat and large arc surfaces. Application Industry: Widely used in printing, stationery, food, daily chemical, electronics, medicine, and other industries. Application examples: Book plane labeling, folder labeling, packaging box labeling, plate labeling, etc. 4..Working Process Core working principle: The sensor detects the passing of the product, sends back the signal to the labeling control system, and the signal passes through PLC After treatment, the label is sent out at an appropriate time and attached to the set position of the product. The product flows through the label covering device, the label is covered firmly, and the attaching action of one label is completed. Operation process: Release products (can be connected to the assembly line) Product conveying (automatic realization) Product alignment (automatic realization) Product detection (automatic realization) Labeling (automatic realization) Labeling (automatic realization) Collect labeled products . 5.Technical Parameters (The following are the technical parameters of standard models. Other special requirements and functions can be customized). Labeling accuracy: ± 1mm (excluding product and label errors); Labeling speed: 30 ~ 80 pieces / min (related to product size); Applicable product size: Length: 40mm ~ 400mm Width: 40mm ~ 200mm Height: 0.5mm ~ 120mm Applicable label size: Length: 6mm ~ 300mm Width (bottom paper width): 15mm ~ 120mm Overall dimensions: About 1920mm × 830mm × 1350mm(Length × Width× Height); Applicable power supply: 220V/50Hz； Overall weight: About 188kg. Applicable label inner diameter: Φ 76mm Applicable label outer diameter: Φ 300mm 6.Functional Features It has a wide range of application, which can meet the product plane labeling and self-adhesive film with a product width of 30mm ~ 200mm. Replacing the labeling mechanism can meet the labeling of uneven surfaces; High labeling accuracy, subdivision stepping motor or servo motor drive, accurate labeling; The design of the deviation correction mechanism of the label belt detour ensures that there is no left-right deviation in the process of label traction; The eccentric technology is applied to the traction mechanism, and the traction label does not slip to ensure accurate marking; It is firm and durable, adopts three-bar adjustment mechanism, makes full use of the stability of triangle, and the whole machine is solid and durable; High stability, advanced electric control system composed of Panasonic PLC + display and control touch screen + sembco needle eye + Germany Sike label eye, supporting equipment 7 × 24-hour operation; The adjustment is simple, and the design of 6-DOF adjustable adjustment seat makes the conversion between different products simple and time-saving; Flexible application, single machine production or assembly line production, simple production site layout; Intelligent control, automatic photoelectric tracking, with no labeling, no labeling automatic correction and label automatic detection functions to prevent missing labeling and label waste; Touch screen operation interfacce, full Chinese notes and perfect fault prompt function, simple and fast adjustment of various parameters and convenient operation; Powerful function, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, which is convenient for production management; Optional features and parts: ① Hot coding / inkjet function; ② Automatic material receiving function (considering the product); ③ Automatic feeding function (considering the product); ④ Add labeling device; ⑤ Other functions (customized according to customer requirements). Main Electrical Configuration Electrical Name Quantity Model and Specification Beacon Eye 1 set Germany Sik...
